원래 장소:
광동 중산 중국
브랜드 이름:
TOUPACK
인증:
CE

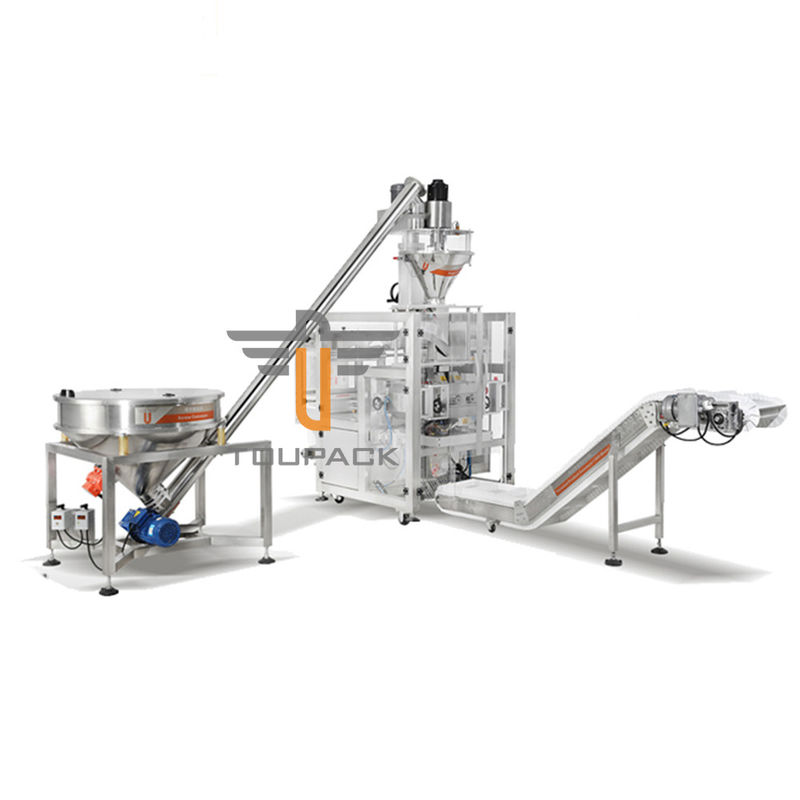

Full Automatic Coffee Beans & Coffee Powder Weighing And Packing Machine Line
Application:
Machine has an independent screw measurement, adopted high accuracy stepping motor driver, filling with screw. The machine can be adjusted in your favor in the measurement range by different screw.It is used for the automatic packing of loosing, sticky powder etc. Such as flour powder, curry powder, lotus powder, soybean milk powder, milk powder, spices, health food, etc.
Features:
1. Intelligent temperature controller and smooth sealing;
2. Imported PLC control system,
3. Combined with metering equipment, full automatic packaging process including feeding, metering, bag filling, date printing and auto counting can be compelted.
4. The setting and modification of packaging parameter can be done via the touch screen, more, it can save 10 different types of parameters.

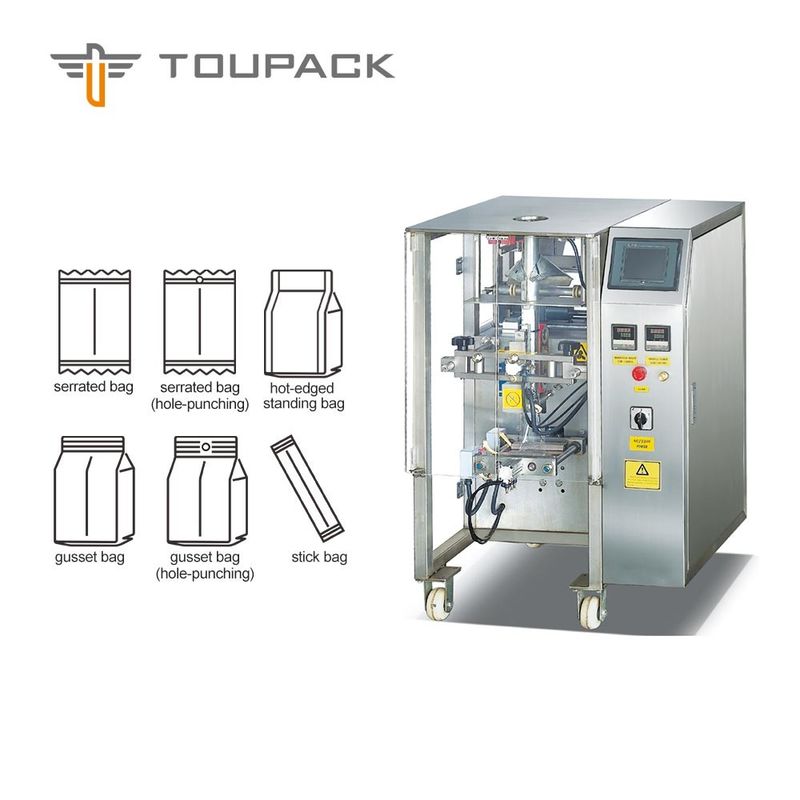

5. Different Type of bag making: Can make pillow bag, punched hanging bag, mutliplecontinuous bags etc. According to customer's requests.
Specifications:
| Model | VB-520 |
| Packing speed | 15-70bags/min |
| Bag-making size | (L)80-350mm(W)80-250mm |
| Filling range | 150-2000ml |
| Film width | 180-520mm |
| Packing materials | OPP/CPP PET/PE etc |
| Film thickness | 0.04-0.08mm |
| Air consumption | 0.36m3/min 0.6MPa |
| Power supply | AC220V 50Hz 3.5kw |
| Machine dimensions | (L)1750× (W)1050× (H)2650mm |
| Machine weight | 680kg |
| Item | Specifications |
| Metering system | Screw rotary filling auger filler |
| Packaging weight | 10-5000g (alter screw accessory) |
| Packaging precision | ±0.3%-1.5% |
| Packaging speed | 5-50 bags/min |
| voltage | Three phase 380v ( AC 380v) 50/60HZ |
| Machine power | 1.5kw |
| Machine weight | 200kg |
| Hopper volume | 50L |
Customer-made case:
